Product Description:

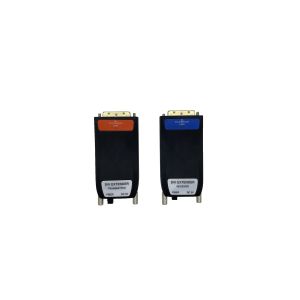

MINI DVI optical transceiver is a miniaturized device used to solve
the problem of long-distance high-speed transmission of DVI/HDMI
video images. MINI DVI optical fiber transmitter can support EDID
learning, compatible with different display devices with different
resolutions. DVI optical transmitter includes a signal transmitter
and a receiver, using USB power supply, can be powered through the
projector, display, video processing equipment USB interface, to
solve the problem of on-site installation power supply. The device
is transmitted through a single mode optical fiber, which can
travel up to 2KM. The biggest feature of the product is small, easy
to install, low heat.MINI DVI optical transceiver 2km signal
extension with no delay, no compression and high quality.
Features:
- Conforms to HDMI 1.3 and DVI 1.0 specifications
- Supports 10.2Gpbs video bandwidth
- The highest video resolution is 1920x1200@60Hz
- The DVI/HDMI signal can be extended by 2km through single-mode
fiber optic lines and 200M through multi-mode
- The transmitter supports EDID learning
- HDMI supports audio transmission
- Supports 3D format video/MINI DVI optical transceiver
Technical Parameters:
| Video | HDMI compatible | HDMI 1.3/MINI DVI optical transceiver |
| DVI compatible | DVI 1.0 |
| Video bandwidth | 10.2Gbps |
| Video resolution | 480i ~1080p50/60Hz, 1920x1200@60Hz; HDMI resolution up to 4K30HZ
backward compatible |
| Color space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color depth | 8/10/12-bit (1080P60Hz) |
| HDMI audio format | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission distance | 2KM (single-mode optical fiber), does not support multi-mode
optical fiber transmission |
| Electrostatic protection | Human body model: ±8kV (air discharge), ±4kV (contact discharge) |
| Port | transmitter | Input port: 1 x DVI-D [19-pin female] 1 x Micro USB Output port: 1 x FIBER |
| receiver | Input port: 1 x FIBER1 x Micro USB Output port: 1×DVI-D [19-pin female] |
| Fuselage | shell | Zinc alloy shell |
| colour | Black |
| dimension | Transmitter/receiver: 75.5mm(L)× 41mm(W)×16.5mm(H) |
| weight | Transmitter: 113g, receiver: 111g |
| Power source | DC 5V/1A |
| Maximum power consumption | Transmitter: 2.74W (Max), receiver: 3.03W (Max) |
| Operating temperature | 0-40℃ |
| Relative humidity | -20-90%RH (non-condensing) |
| Storage temperature | - 20-60℃ |
Applications:
The MINI DVI optical transceiver are widely used in stage rental, exhibition, foreign language
travel, video conferencing, rail transit, radio and television and
other different industries.
- Professional Audio-Visual Installations:
The MINI DVI optical transceiver ideal for connecting Mini DVI sources, such as laptops and
computers, to projectors or large displays in conference rooms,
auditoriums, and event spaces, ensuring high-quality video
transmission over long distances.
Utilized in broadcasting environments where video signals need to
be transmitted from cameras to mixing consoles or monitors over
considerable distances without quality loss, enhancing live
production capabilities.
The MINI DVI optical transceiver used in high-end home theaters to extend Mini DVI connections from
media sources to projectors or large screens, ensuring that
high-resolution content is displayed without degradation.
These applications showcase the versatility and effectiveness of
Mini DVI optical transceivers across various sectors, emphasizing
their importance in delivering high-quality video transmission in
diverse environments.
